商品描述

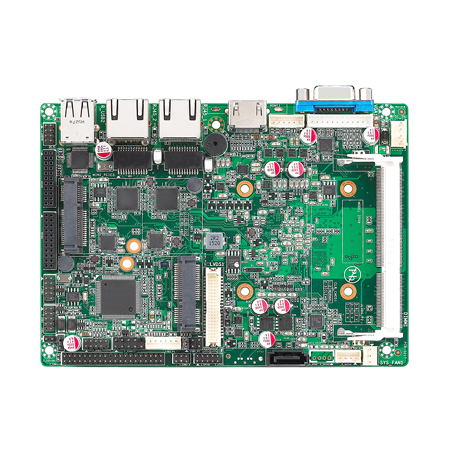

Intel Bay Trail J1900处理器, 6*COM, 2*LAN, 2*Mini-PCIe, DC 12V供电, 3.5英寸 (146*105mm)
采用Intel Bay Trail J1900处理器
提供6*COM, 7*USB, 2*千兆LAN
提供1*VGA, 1*LVDS, 支持双屏异显
提供2*Mini-PCIe (支持1*mSATA, 1*Wifi/3G/4G)
采用DC 12V供电
3.5英寸(146*105mm)
|
General |
|
|
CPU |
Intel® Bay Trail J1900 CPU, Quad-core, up to 2.42 GHz, TDP10W |
|
Chipset |
Null |
|
Memory |
Up to 8 GB DDR3L 1333 MHz, 1*SO-DIMM |
|
Storage |
1*SATA 2.0, 1*mSATA |
|
Expansion Interface |
2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows 7/8/10, Linux, Android |
|
I/O Interface |
|
|
Serial Port |
6*RS232 (COM6 RS485 optional) |
|
USB |
7*USB 2.0 (2*on rear I/O, 5*header) |
| Ethernet |
2*Realtek® PCI-E LAN for 1000Mbps |
|
Audio |
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports |
|
PS/2 |
1*PS/2 header (Keyboard and Mouse Supported) |
|
Parallel Port |
1*LPT |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
Null |
|
Display |
|
|
Display Interface |
1*VGA: max resolution up to 2560*1600@60Hz |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
3.5'', 146*105mm |
|
Power Input |
DC 12V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
1、EC3-1902 Intel Bay Trail J1900处理器, 6*COM, 2*LAN, 2*Mini-PCIe, DC 12V供电
2、EC3-1902-A Intel Bay Trail J1900处理器, 6*COM, 2*Intel千兆LAN, 2*Mini-PCIe, , 背置CPU,DC 12V供电
3、EC3-1902-B Intel Bay Trail J1900处理器, 6*COM, 11*USB, 2*LAN, 2*Mini-PCIe, DC 12V供电
2、EC3-1902-A Intel Bay Trail J1900处理器, 6*COM, 2*Intel千兆LAN, 2*Mini-PCIe, , 背置CPU,DC 12V供电
3、EC3-1902-B Intel Bay Trail J1900处理器, 6*COM, 11*USB, 2*LAN, 2*Mini-PCIe, DC 12V供电
